Introduction

Mutations of the SLC26A4 gene cause nonsyndromic recessive hearing loss DFNB4 or Pendred syndrome [1]. These patients demonstrate congenital hearing loss and enlarged vestibular aqueduct (EVA) on the temporal bone computedtomography (CT), with the addition of a thyroid phenotype in Pendred syndrome [1]. Unlike most forms of autosomal recessive type of hearing loss that show congenital severe to profound hearing loss, considerable proportion of patients with SLC26A4 mutations have significant residual hearing at birth that eventually worsen [2]. Thus, many of these patients use hearing aids initially and become candidates for cochlear implantation (CI) in the 2nd or 3rd decade [3]. CI in patients with EVA has been successfully performed since the first report by Slattery and Luxford [4] in 1995, and many studies have reported excellent auditory outcome without surgical complications mostly in children [5-8]. Considering the favorable outcome of CI in patients with EVA, there are not many reports on the prognostic factors for auditory outcome after CI in these patients. A recent study suggested that children with isolated EVA demonstrated better speech performance following CI compared to those with concomitant cochlear anomalies, although statistical significance was not reached [9].

When managing hearing loss in patients with EVA, special patient characteristics have to be considered. There is a wide variability concerning the degree of residual hearing in the prelingual period that either progress gradually or suddenly aggravate in the adolescent or adult period [3,7]. The time point of when their hearing worsens to severe to profound hearing loss is related to the level of exposure to speech prior to CI, which varies greatly among patients with EVA. Therefore, this group of patients should be distinguished from prelingually deaf patients with delayed implantation or postlingually deaf adults. In an audiological aspect, patients with EVA usually have an air-bone gap in the low frequencies due to the third window effect that can also influence the outcome of CI [3].

Although patients with EVA should not be considered equivalent to prelingually deaf patients, these patients with early-onset hearing loss undergoing CI in the adolescent or adult period need special attention and individualized strategies for auditory rehabilitation. Prognostic factors related to auditory performance after CI in prelingually deaf adults should also be carefully evaluated in these patients, including age at onset of hearing loss, age at implantation, duration of deafness, mode of communication, degree of residual hearing, use of hearing aids, and speech intelligibility [10-13].

Despite the fact that EVA can result from various causes, most of the previous studies reporting the outcome of CI in patients with EVA have not included the genetic data [6-9,14,15]. A study by Mey, et al. [16] included the results of genetic analysis but only reported the surgical outcome and complications of CI in patients with EVA. Lai, et al. [17] reported the results of SLC26A4 mutations but did not compare the outcome of CI according to mutation types. In this study, we analyzed the outcome of CI in patients with EVA caused by biallelic SLC26A4 mutations who were implanted in their adolescent or adult periods, and also evaluated the various prognostic factors of postoperative auditory performance after CI in order to aid in candidacy selection and patient counseling. In addition, the genetic data of SLC26A4 mutations were correlated with outcome.

Subjects and Method

Results

Clinical and audiologic characteristics

Clinical characteristics of the patients are summarized in Table 1. The patients were fitted with a hearing aid at a mean age of 6.5 years (range: 2-27 years). Eleven of 16 patients (69%) used bilateral hearing aids. Two patients (patients 9 and 11) had used hearing aids for a short period of time but discontinued their use due to limited benefit. Only one patient (patient 7) used sign language and others communicated using the auditory modality with or without the aid of lip reading. All of the patients exhibited prelingual or perilingual onset of hearing loss of variable degree which had progressed. Seven of 16 patients (44%) experienced sudden aggravation of hearing loss which occurred within 3 years before CI. The mean value for SIR measured preoperatively was 3.5, ranging from 2-5 (Table 1).

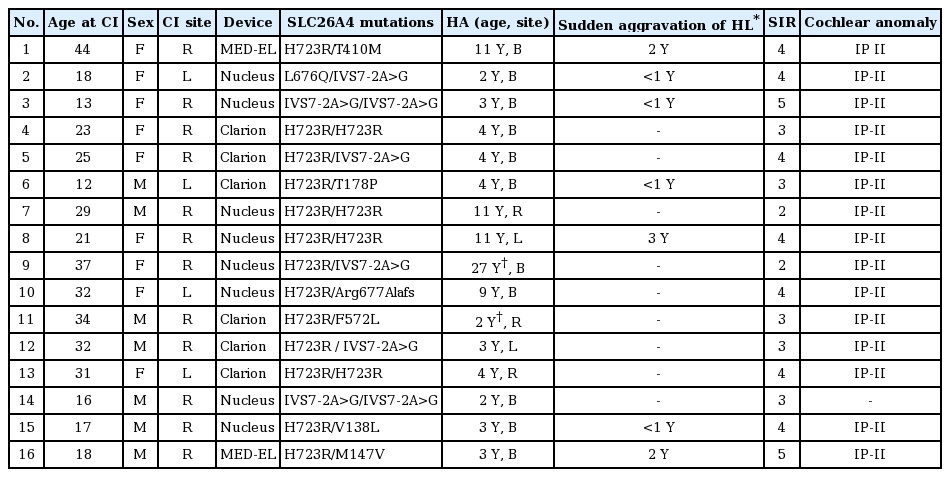

Table 1.

Clinical and genetic data of the patients

Overall postoperative auditory outcome after cochlear implantation

The CAP score was significantly improved after CI from 3.1 to 4.9 (p＜0.05) (Fig. 1). The monosyllable, bisyllable word scores and sentence scores improved significantly in the AV and AO conditions (p＜0.05) (Fig. 2). The mean postoperative scores for monosyllable, bisyllable, and sentence scores were 71, 76, and 84%, respectively, in the AV condition (Fig. 2A). Those scores in the AO condition were 30, 39, and 52%, respectively (Fig. 2B). Of the six patients who did not show significant improvement in the AO condition (posteroperative AO sentence score ＜40%), all but one patient (patient 9) demonstrated significant improvement in the AV condition.

Fig. 1.

The preoperative and postoperative CAP scores in patients with biallelic SLC26A4 mutation. The individual data show that CAP scores were improved in all of the patients (A). The improvement in CAP scores was statistically significant (p<0.001) (B). CAP: categories of auditory performance, preop: preoperative, postop: postoperative.

Fig. 2.

The preoperative and postoperative values for monosyllable and bisyllable word scores and sentence scores in (A) AV condition and (B) AO condition. Statistically significant improvement was demonstrated in monosyllable and bisyllable word scores and sentence scores in both AV and AO conditions (p<0.05). *p<0.05. AV: auditory-visual, AO: auditory-only, 1-syll: monosyllable, 2-syll: bisyllable, preop: preoperative, postop: postoperative.

Factors related to postoperative auditory outcome after cochlear implantation

Various factors that may be related to the outcome after CI were analyzed. First, the preoperative PTA in the better ear was demonstrated to have significant correlation to postoperative outcome (Fig. 3). The presence or absence of measurable bone conduction in at least one frequency of the ipsilateral ear was evaluated and correlated with postoperative sentence scores in the AO condition (Fig. 4). The postoperative sentence score was significantly higher when there was measurable bone conduction in at least one frequency usually in the low frequencies. When there was a definite history of sudden aggravation of hearing loss seen, significantly better postoperative sentence scores could be achieved (Fig. 5). Seven patients had a recent history of sudden aggravation of hearing loss, within 3 years prior to CI, which did not improve with steroid treatment. The preoperative SIR scores correlated significantly with the postoperative outcome, in which patients with an SIR score of 2 demonstrated poor postoperative outcome while those with an SIR score of 5 showed high postoperative sentence scores (Fig. 6).

Fig. 3.

The correlation between preoperative residual hearing and postoperative outcome. The preoperative pure tone average values (dB HL) demonstrated significant correlation to postoperative sentence scores in auditory-only condition (r=-0.570, p=0.021). AO: auditory-only, PTA: pure tone average.

Fig. 4.

The difference in the postoperative outcome regarding the presence or absence of measurable bone conduction in the implanted side. Patients with measurable bone conduction thresholds in the implanted ear (n=4) demonstrated significantly better postoperative sentence scores than those with no measurable bone conduction threshold (n=12) (p=0.03). AO: auditory-only, BC: bone conduction.

Fig. 5.

The difference in the postoperative outcome regarding the presence or absence of a recent history of sudden aggravation of hearing loss. Patients with a recent history of sudden aggravation of hearing loss (n=7) demonstrated significantly better postoperative sentence scores than those without (n=9) (p=0.002). AO: auditory-only, HL: hearing loss.

Fig. 6.

The correlation between preoperative SIR scores and postoperative outcome. The preoperative SIR scores correlated significantly with postoperative sentence scores in auditory-only condition (r=0.444, p=0.024). AO: auditory-only, SIR: speech intelligibility rating.

Age at CI did not show significant correlation to postoperative outcome (r=-0.427, p=0.099). The type of SLC26A4 mutations was divided into 3 groups including H723R homozygous, H723R compound heterozygous, and other mutations. There was a clear tendency of lower postoperative sentence scores in the group with H723R homozygous mutation, but statistical significance was not reached (p＞0.05) (Fig. 7).

Fig. 7.

The correlation between the type of SLC26A4 mutation and postoperative outcome. Although there was a tendency of lower postoperative sentence scores in the p.H723R homozygous mutation group, the difference was not statistically significant between the 3 types of SLC26A4 mutation (p=0.486). AO: auditory-only.

Other factors that may have influenced the outcome were the use of sign language (n=1) and nonuse of hearing aids before CI (n=2). Patient 7 who was implanted at 29 years of age, was the only patient who used sign language together with the auditory modality for communication and had used a hearing aid on the right side since 11 years of age. He was educated in a special school for deaf children. He had no measurable bone conduction in any of the frequencies preoperatively and his preoperative SIR score was 2. Although there was mild improvement of sentence scores in the AV condition from 20% to 43%, no significant improvement could be achieved in the AO condition from 0% to 5%. Patient 9, implanted at the age of 37 years, demonstrated no improvement of sentence scores in the AV or AO settings, and the postoperative sentence scores evaluated 3 months following switch-on was 0%. This patient exhibited no measurable bone conduction on pure tone audiometry with a low SIR score of 2 preoperatively, and also, she had discontinued use of hearing aids 10 years prior to CI because of no benefit and discomfort. Unfortunately, this patient was lost to follow-up afterwards prohibiting further postoperative evaluations.

Discussion

Significant improvement in auditory performance could be achieved following CI in patients with EVA carrying biallelic SLC26A4 mutations despite the delayed timing, irrespective of age. The overall CAP scores as well as word and sentence scores improved significantly. Although there have been many reports on the outcome of CI in patients with EVA, most of them focused on children and did not include the results of genetic analysis [5,6,8,9,14,15]. There are few reports on the outcome of CI performed in the adult period in patients with EVA. Miyamoto, et al. [7] reported the outcome of CI in 14 adults and 9 children with EVA, and concluded that the auditory and speech recognition performance did not differ compared to control subjects. Another recent study analyzed the outcome of CI in 19 adults and 22 children with either nonsyndromic EVA or Pendred syndrome, and compared the results with the control group [20]. This study also suggested that there was no significant difference in the speech perception results among the EVA group, Pendred syndrome group, and the control group in adult implantees [20]. In both of these studies, the adult group consisted of both prelingual and postlingual deaf patients, mostly postlingual deaf adults in the former study, and the genetic data were not included [7,20].

Most of the patients with EVA and SLC26A4 mutations have pre- or perilingual hearing loss and acquire variable auditory and speech abilities depending on factors such as the degree of hearing loss, use of hearing aids, progressive nature of hearing loss, and communication modes. It is a challenge to precisely determine the prognostic factors of CI in this special entity of patients because the exact onset and progressive nature of their hearing loss is often hard to specify retrospectively. In determining the optimal time for CI, the importance of regular longitudinal audiometric follow up has been emphasized [5,9,20]. Although patients with EVA usually perform better than prelingually deaf counterparts due to more exposure to normal speech patterns before progressing to profound hearing loss, individualized strategies are needed considering the variability in auditory outcome of CI in late implanted patients with early-onset hearing loss compared to postlingually deaf adults [5,10,13,21].

Several predictors of language development following CI have been reported including age at implantation, duration of hearing loss, degree of residual hearing at the time of surgery [22]. In this study, the various prognostic factors were analyzed that could be useful in candidacy selection and preoperative counseling in patients with EVA. First, when preoperative status of residual hearing was correlated with outcome, the presence of measurable bone conduction in the implanted ear and the level of PTA of the better ear demonstrated significant prognostic value. Although all of the patients included in this study had severe to profound hearing loss and a sentence score of less than 50%, variable degrees of residual hearing were present especially in the low frequencies, frequently with an air-bone gap. It has been reported that approximately 20% of spiral ganglion cells are present in patients with EVA compared to normal subjects, which is more than the previously reported minimally required number of spiral ganglion cells to achieve auditory stimulation after CI [23]. The presence of a measurable bone conduction in the implanted side may reflect more reserved function of the hair cells and the spiral ganglion cells to be stimulated by the cochlear implant considering that there is often an air-bone gap in the low frequencies in patients with EVA due to the third window effect [3]. Also, as Yang, et al. [13] have emphasized the importance of residual hearing in prelingually deaf adults regarding the postoperative performance after CI, the preoperative PTA in the better ear was also significantly correlated with outcome in patients with EVA in this study.

When the pattern of hearing loss progression was analyzed in patients with EVA to evaluate its prognostic significance, the presence of a history of sudden aggravation of hearing loss was significantly related to better postoperative outcome. Seven patients had experienced recent aggravation of hearing loss within 3 years before CI, meaning that short duration of severe to profound deafness and longer exposure to acoustic sounds are related to better auditory performance after CI. Sudden hearing loss in patients with EVA is known to be related to events such as head trauma, upper respiratory tract infections, valsalva maneuver and so forth [24]. Since it is difficult to have serial objective audiometric data in patients with long-term deafness, the presence of a recent history of sudden loss in hearing might provide clues about the duration of meaningful auditory experience.

In this study, several other factors that may reflect an adequate auditory input during the critical period for development of speech were also found to be associated with postoperative speech perception after CI. These factors include communication modes, continued use of hearing aids, and speech intelligibility. Previous studies have reported that patients who use oral communication and had received auditory- oral training together with continued use of hearing aids performed much better than those using total or sign communication [10,13]. Also, preimplant speech intelligibility has been reported to be highly correlated with postoperative outcome after CI [12,21]. Preimplant speech intelligibility can be a good reflection of the availability of early auditory experience, and van Dijkhuizen, et al. [12] suggested preoperative speech intelligibility to be a valid predictor of speech perception outcome with a cochlear implant in adults with prelingual deafness.

All of the patients in this study had biallelic mutations of the SLC26A4 gene. The frequency of common allelic mutations was similar to the previous reports on Koreans in which p.H723R and IVS7-2A＞G were the most common mutations [25,26]. Lee, et al. [26] have reported that patients with p.H723R homozygous mutations had worse hearing, higher possibility of combined cochlear malformations, and less probability of hearing fluctuations compared to those carrying other type of mutations. Functionally, it was shown that the rate of pendrin expression at the plasma membrane and the anion exchange activities were lower in p.H723R transfected cells than those in cells transfected with p.T410M plasmids when using HEK 293 cells [26]. When the type of mutation of the SLC26A4 gene was correlated with postoperative auditory performance in this study, a tendency of lower postoperative sentence scores was observed in patients with p.H723R homozygous mutations in accordance with the results of phenotypic and functional analysis reported by Lee, et al. [26] This tendency could be explained in the way that earlier progression to profound hearing loss in patients with p.H723R mutations may lead to poorer outcome after CI. However, the difference did not reach statistical significance, which could be due to the small number of subjects included in this study or it may be that these differences in residual pendrin function caused by different genetic aberrations do not influence the outcome of CI. Previous studies have reported good outcome following CI in children with SLC26A4 mutations [17,27]. More large scale studies are warranted to confirm the effect of genetics on the outcome of CI.

There are some limitations of this study. One is the difference in the time point when the postoperative outcome was evaluated. Although all of the patients were counseled strongly to follow the scheduled postoperative mapping and rehabilitation sessions, 3 of the patients did not undergo speech evaluations beyond 3 months following switch-on. It may be that patients with low auditory perception scores were less motivated to continue with the rehabilitation process. However, Snik, et al. [11] and others have demonstrated that congenitally deaf patients implanted during adulthood show obvious progression during the first few months of cochlear implant use, which plateau afterwards [28]. Therefore, we believe that the difference in the postoperative follow-up period probably did not have a major influence on the outcome. Another limitation is the small number of subjects included. Yet since there is limited data reporting the results of CI in EVA patients implanted beyond early childhood, we think that this study may be valuable in that a specific subset of patients with a common genetic cause was included. Lastly, it would have been better to include quality of life measures associated with hearing, which should be performed in future studies [11,21]. In addition, the rationale for including patients aged 12 years and older in this study was that the cortical auditory maturation is known to end by 12 years of age and that the outcome assessment after CI becomes reliable after the age of 12 years without the ceiling effect [29,30].

Despite the early-onset of hearing loss, significant improvement in auditory performance can be expected after CI in adolescent and adult patients with EVA and biallelic SLC26A4 mutations. The factors related to the level of residual hearing and speech exposure prior to CI including measurable bone conduction thresholds, preoperative PTA, the presence of recent history of sudden aggravation of hearing loss, and preoperative SIR scores were correlated with auditory outcome of CI. The type of SLC26A4 mutations did not reach statistical significance as a prognostic factor regarding auditory performance after CI. Significant prognostic factors should be considered in candidacy selection and preoperative counseling in these patients.
